Nant Melyn Bridge Inspection for Assessment

A465 Bridge Inspection Principal Inspection for Assessment Concrete Testing Corrosion Assessment Hinge Inspection — Figure 1: Bridge Inspection of A465 Heads of the Valley Bridges - Nant Melyn

Nant Melyn Bridge Inspections

Beta Design Consultants provided the inspections for assessment carried out for the A465 Heads of the Valley Bridges – Nant Melyn.

FCC Construction were contracted by the Welsh Government to carry out major upgrades to 18km road stretch of the road. This required the inspection of multiple bridges on the route including Nant Melyn – which had typical bridge defects at joints and hinges. Beta Design Consultants were appointed to provide structural investigation and testing services that included:

Half cell potential mapping.
Corrosion assessment (chloride and carbonation).
Resistivity testing.
Moisture content testing.
Intrusive inspection to examine rebar corrosion extent.
We also offer other testing and structural investigation services related to Assessment for Inspection – please refer to our structural investigation and tests.
We also offer repair and strengthening design services including CFRP and HPC.

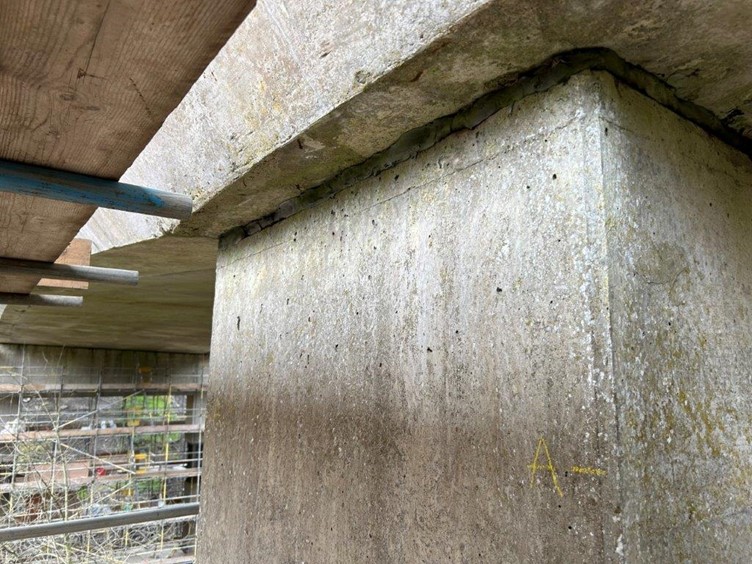

A465 Bridge Inspection Principal Inspection Assessment Concrete Testing Corrosion Assessment Hinge Inspection NDT — Figure 2: The inspections were carried out on the two piers using scaffold provided by the main contractor.

A465 Bridge Inspection Principal Inspection Assessment Concrete Testing Corrosion Assessment Hinge Inspection — Figure 3: The testing required access scaffolding on both sides for both piers

A465 Wales UK Bridge Inspection Principal Inspection Assessment Concrete Testing Corrosion Assessment Hinge Inspection — Figure 4: Aerial Photo showing the bridge crossing the watercourse

A465 Bridge Inspection Principal Inspection Assessment Concrete Testing Corrosion Assessment Hinge Inspection NDT Half Cell

A465 Bridge Inspection Principal Inspection Assessment Concrete Testing Corrosion Assessment Hinge Inspection NDT resistivity — Figure 5: resistivity testing of the bridge can be used for corrosion assessment

A465 Bridge Inspection Principal Inspection Assessment Concrete Testing Corrosion Assessment Hinge Inspection NDT Half Cell — Figure 6: Half cell potential mapping for corrosion assessment
