Foundation Design

Beta Design Consultants are expert structural engineers providing foundation design and foundation repair solutions that ensure structures are safe, durable, economical, and fit for their intended purpose while effectively managing ground-related risks.

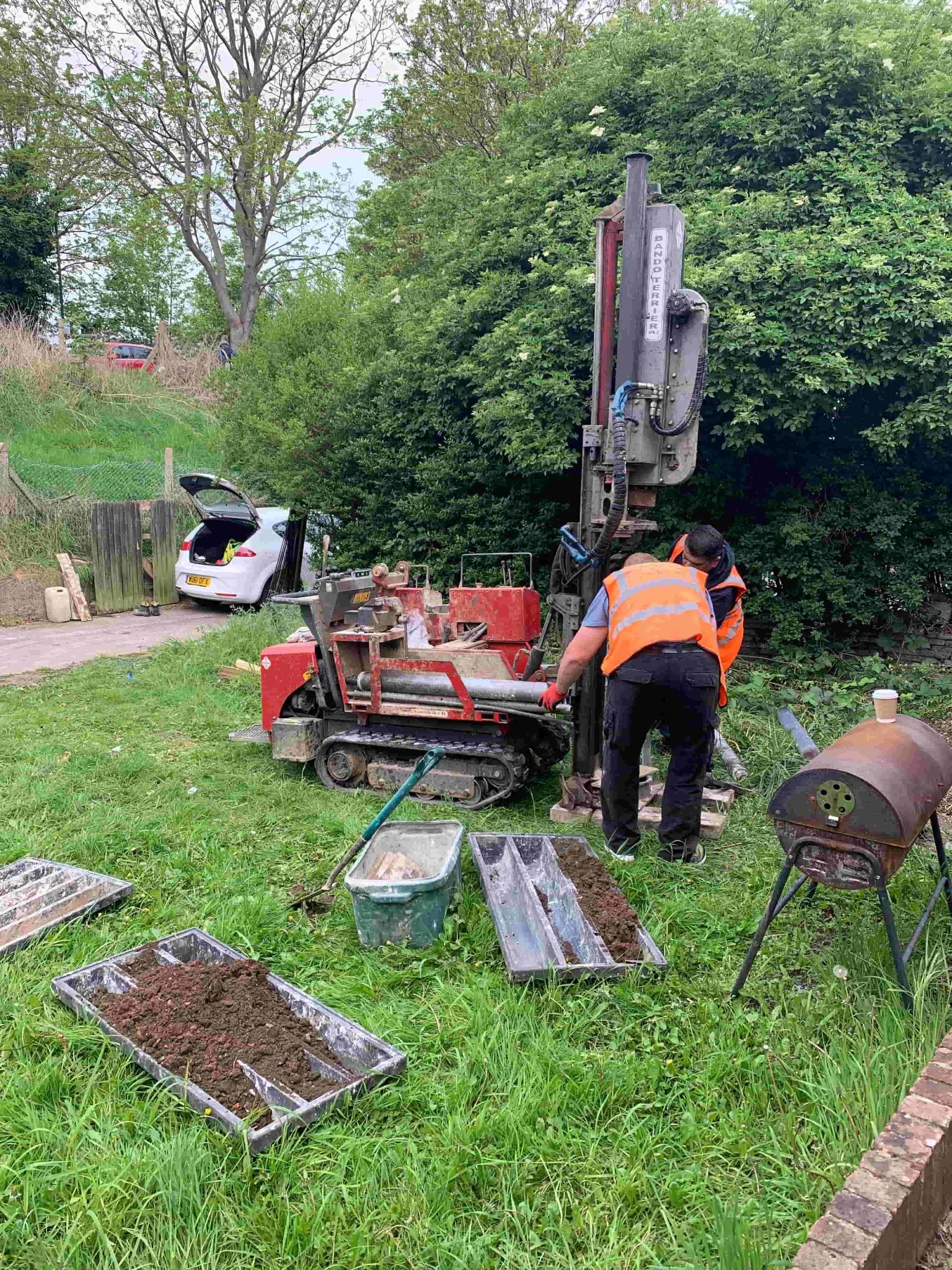

Our expertise extends from the initial site investigation through design, construction, and, where necessary, remedial works. Our team prepares site investigation briefs, supervises geotechnical investigations, and, where appropriate, carries out in-house drilling and soil testing.

Foundation Design Services by Beta Design Consultants Structural Engineers

Our structural engineers develop foundation solutions that safely transfer loads from the structure to the ground while considering soil conditions, groundwater, adjacent structures, and construction constraints.

In the UK, foundation design presents unique challenges relating to clay soils, granular soils, chalk soils, and sites affected by subsidence, historic mining, or landfill conditions.

Our key responsibilities include:

• Reviewing geotechnical investigation reports and interpreting soil parameters.
• Assessing structural loads from the proposed development.
• Selecting the most appropriate foundation system, including:
  • Pad foundations
  • Strip foundations
  • Raft foundations, including piled rafts
  • Piled foundations, including screw piles, micro-piles, secant piles, contiguous piles, and traditional bored or driven piles
  • Combined or cantilever foundations
  • Ground improvement solutions
• Designing foundations in accordance with relevant standards, including the Eurocodes and UK National Annexes.
• Coordinating with geotechnical engineers, architects, contractors, and utility providers.
• Optimising foundation designs to reduce material usage while maintaining safety and performance.

Role of Beta Design Consultants Structural Engineers in Preventing Settlement

Settlement resulting in cracking is a common risk in the UK and worldwide. Differential or excessive settlement can lead to cracking, distortion, serviceability issues, and structural damage. This is particularly important where finishes are expensive or brittle, or where operational requirements demand very low levels of settlement.

Beta Design Consultants' structural engineers play a critical role in mitigating these risks by:

• Assessing total and differential settlement.
• Matching the foundation type to the ground conditions.
• Designing foundations that distribute loads efficiently.
• Specifying ground improvement where weak soils exist.
• Considering groundwater fluctuations.
• Evaluating the effects of nearby excavations and adjacent developments.
• Designing foundations to accommodate anticipated movements where unavoidable.

Preventative measures implemented during the design stage often cost significantly less than remedial repairs after construction.

Beta Design Consultants Expertise in Foundation Repairs and Strengthening

Our structural engineers have inspected and advised on structural interventions, foundation repairs, and the strengthening of foundations across a wide range of projects. When settlement or foundation distress occurs, our structural engineers investigate the underlying cause before recommending appropriate repairs or interventions.

Typical investigations include:

• Structural condition surveys and visual inspections
• Crack monitoring
• Level surveys
• Trial pits
• Review of historical construction records
• Liaison with geotechnical specialists
• Monitoring of ongoing movement

Repair solutions that we have typically recommended include:

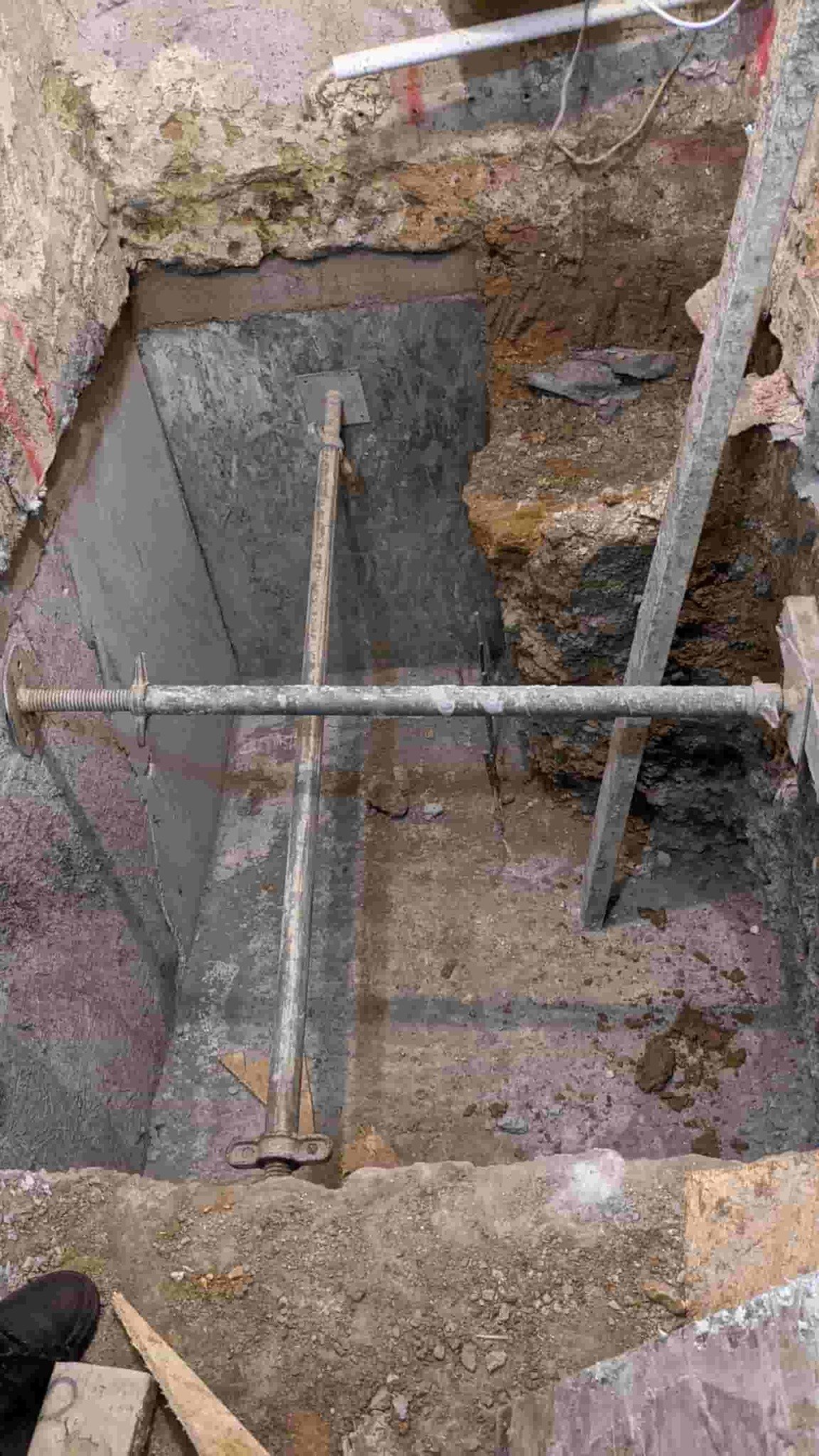

• Underpinning

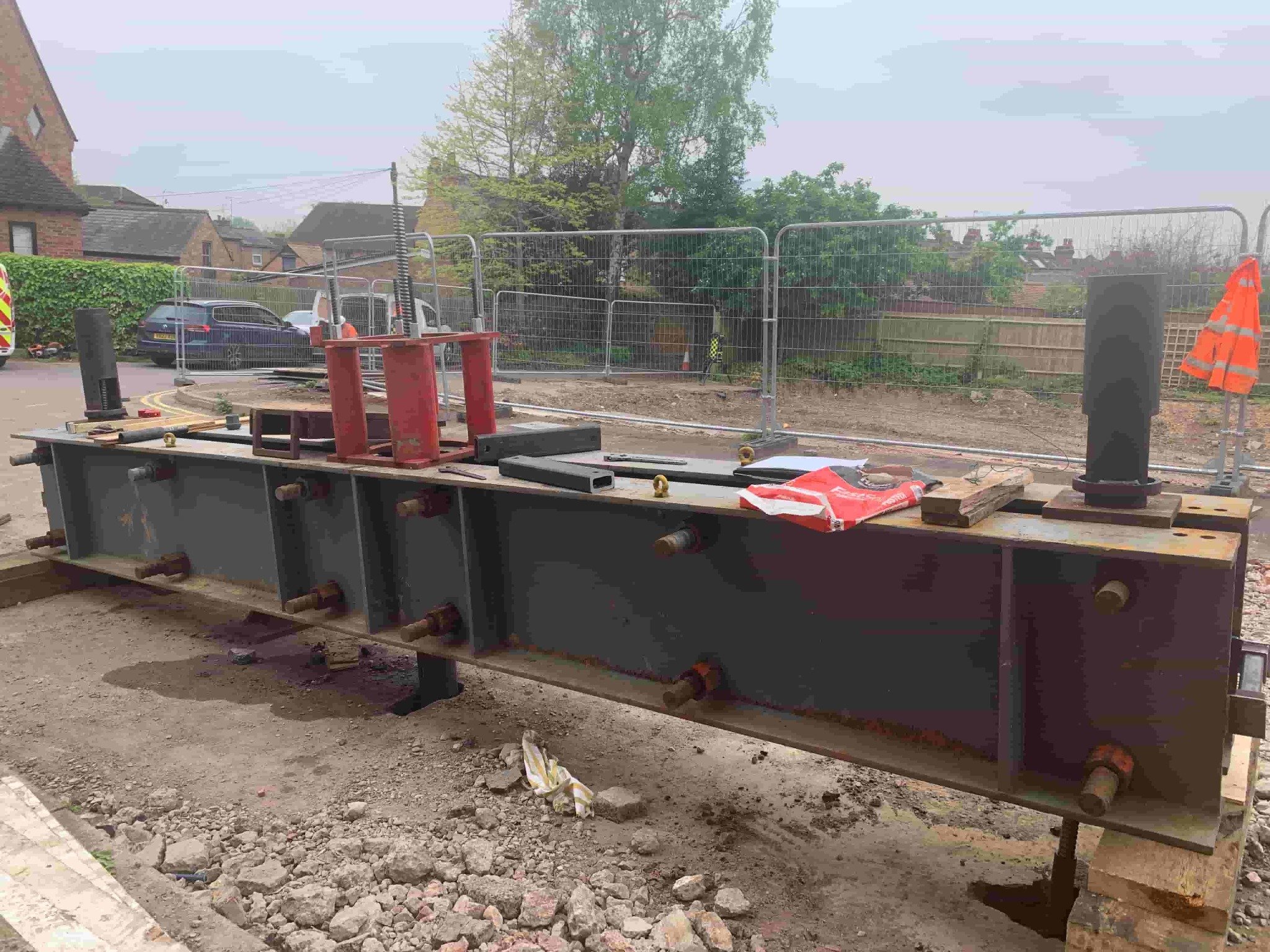

• Mini-piles or micro-piles
• Resin injection
• Pressure grouting
• Concrete jacketing
• Foundation enlargement
• Ground improvement
• Structural stitching and crack repairs
• Drainage improvements to control soil moisture

Each solution is selected based on the underlying cause rather than simply treating the visible symptoms.

Role of Our Structural Engineers in Reducing Construction Costs

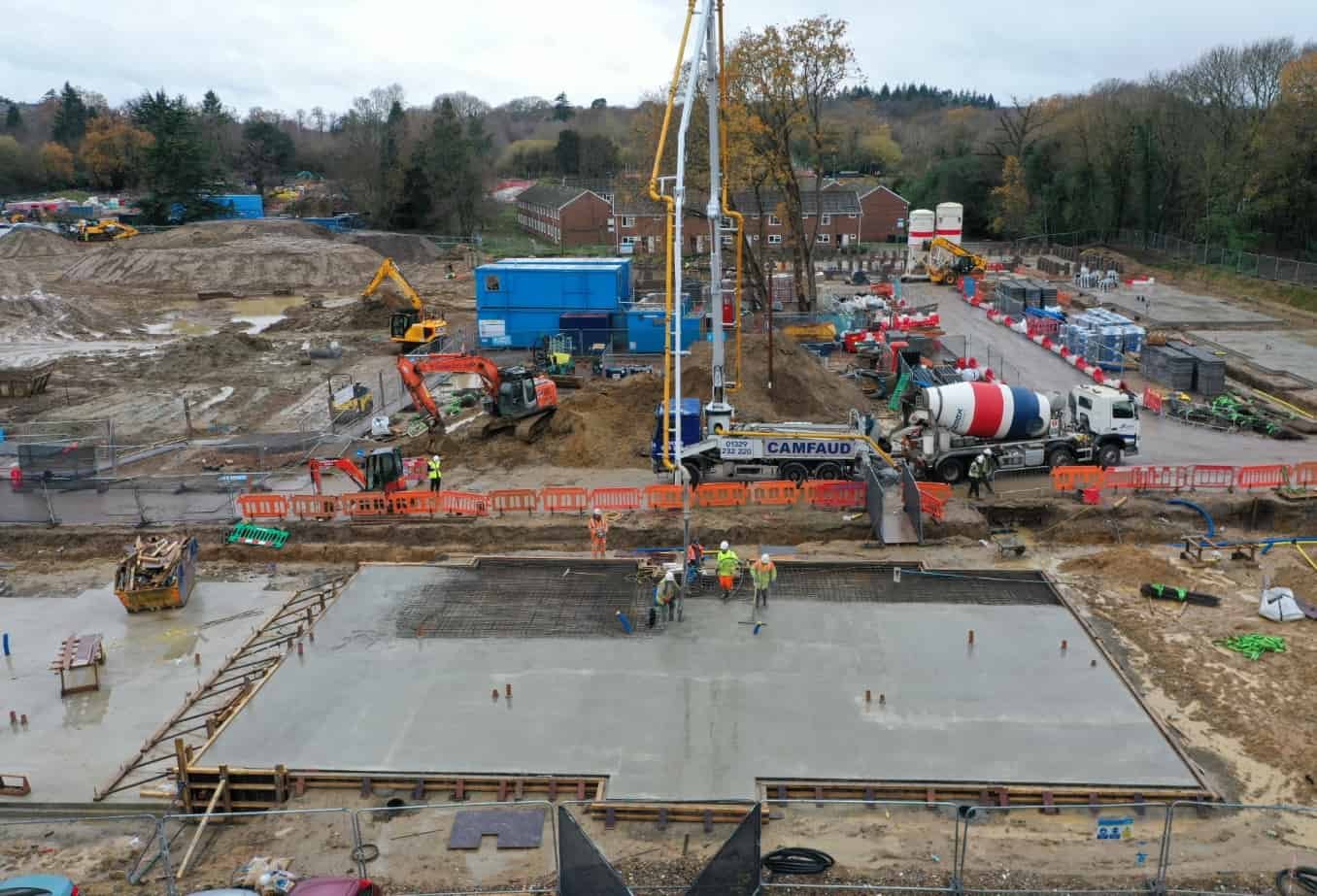

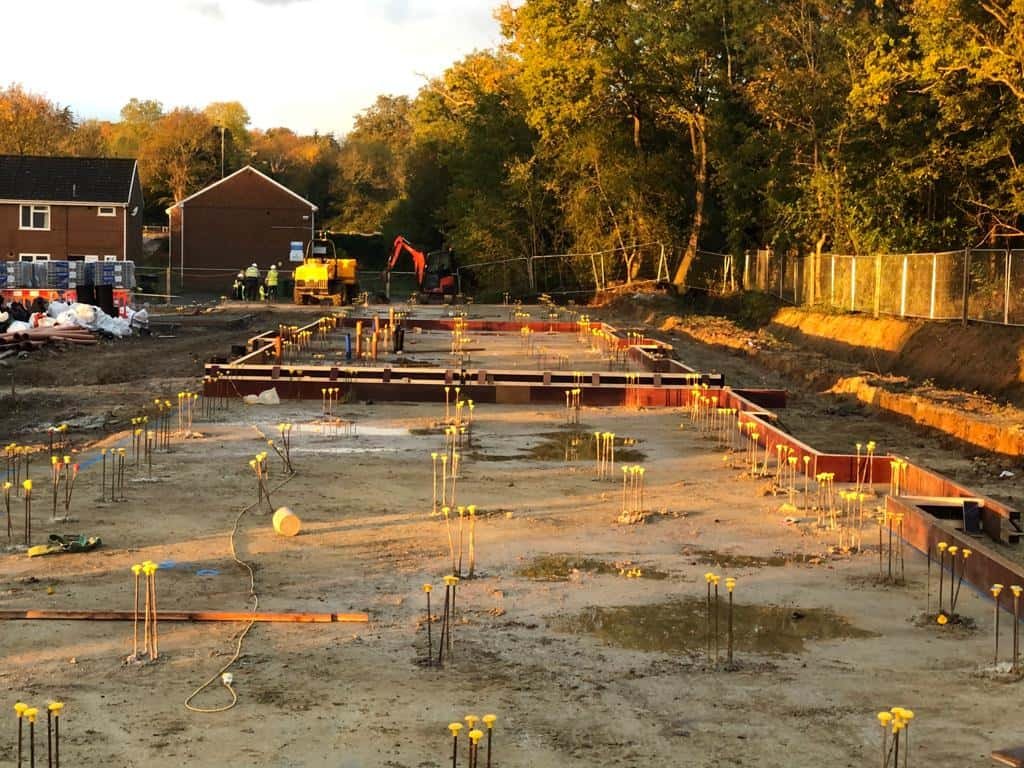

Please refer to our involvement in the St Peter’s Chertsey Hospital NHS Accommodation project to see how our engineers reduced the construction programme by four weeks by optimising the piled raft foundation design.

Our experienced structural engineers add value by optimising foundation designs without compromising safety. Based on our experience, cost-saving measures include:

• Avoiding unnecessarily conservative foundation sizes. This begins with a realistic load take-down based on actual site conditions and project parameters.
• Selecting the most economical foundation type based on site access, geotechnical parameters, and structural geometry.
• Minimising excavation depths while considering the water table and soil type (e.g. granular versus cohesive soils).
• Reducing reinforcement quantities through efficient design.
• Considering staged construction methods.
• Reusing existing foundations where appropriate and assessing whether ground improvement provides a more cost-effective solution.
• Identifying opportunities for value engineering.
• Reducing temporary works requirements.
• Minimising programme delays arising from unforeseen ground conditions.

Early collaboration between structural and geotechnical engineers often delivers substantial project savings.

Our Structural Engineers' Role in Ensuring Safe Construction

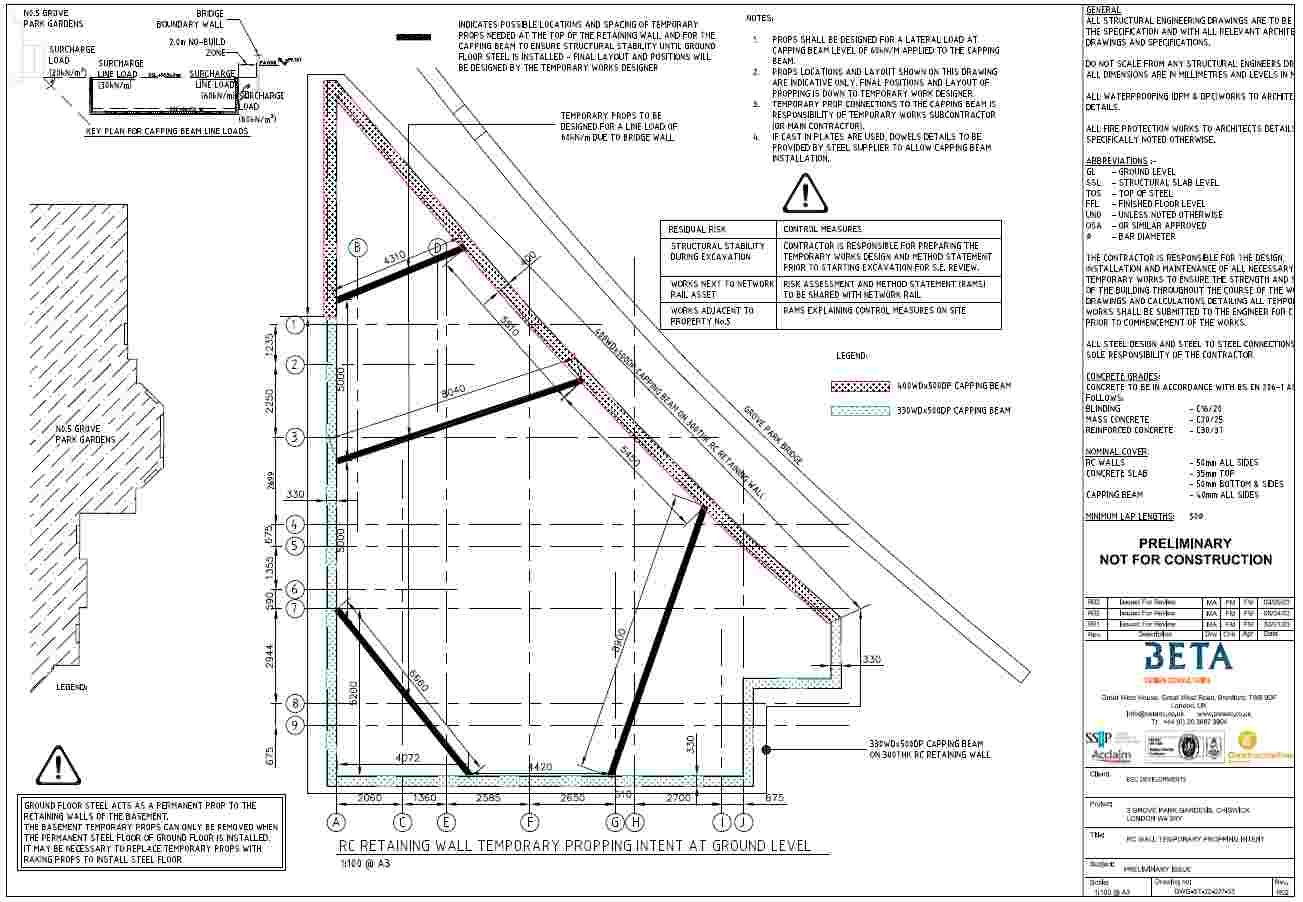

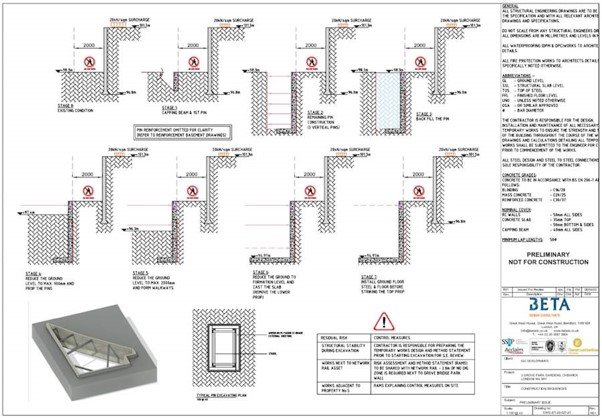

Please refer to our involvement in the design of the Grove Park Gardens Four-Storey Structure, located adjacent to Network Rail assets. Our team considered various engineering solutions to ensure safe construction within a constrained site and recommended the most appropriate approach.

During construction, Beta Design Consultants' structural engineers support safe implementation by:

• Reviewing temporary loading conditions.
• Checking excavation stability and advising on shoring requirements based on soil type and excavation depth.
• Assessing the impact on neighbouring structures.
• Inspecting reinforcement before concrete placement.
• Responding to unexpected ground conditions.
• Issuing revised designs where site conditions differ from the original design assumptions.
• Monitoring foundation performance where necessary.

This approach reduces the risk of construction failures and costly remedial works.

Managing Existing Structures

For existing buildings experiencing movement, Beta Design Consultants' structural engineers:

• Determine whether movement is active or historic.
• Identify the root cause of settlement.
• Assess the structural implications.
• Design proportionate repair solutions.
• Minimise disruption to occupants.
• Extend the service life of the asset.

This is particularly important for heritage buildings, residential developments, infrastructure, and industrial facilities.

Benefits Delivered by Beta Structural Engineers

When providing foundation solutions, our structural engineers ensure that designs deliver:

• Improved structural safety.
• Reduced risk of settlement and cracking.
• Lower construction costs through optimisation.
• Compliance with Building Regulations and relevant design standards.
• Enhanced durability and service life.
• Reduced maintenance requirements.
• Sustainable use of materials.
• Greater confidence for clients, insurers, and stakeholders.

Summary of Beta Design Consultants Foundation Design Services

Our structural engineers play a fundamental role in designing foundations that are safe, efficient, and economical. By integrating structural analysis with geotechnical understanding, we develop solutions that minimise settlement, reduce construction costs, and ensure long-term structural performance.

Where foundation problems arise, we investigate the root cause and design targeted repair and strengthening solutions that restore stability while avoiding unnecessary expenditure.

This expertise is essential for delivering resilient, cost-effective projects across the residential, commercial, industrial, and infrastructure sectors.
